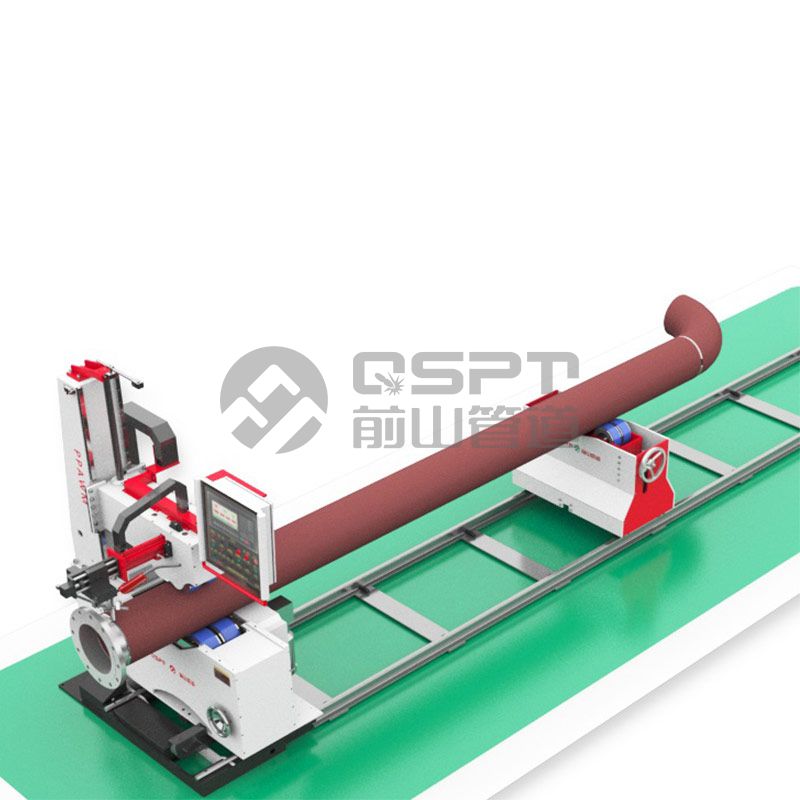

Split Type Pipe Automatic Welding Machine (Ordinary Type)

Model: SPAWM-16Aa/24Aa/32Aa/48Aa

Pipe Diameter Applicable: DN400/DN600/DN800/DN1200



Performance Features:The patented product invented by QSPT; the standard welding machine for Workstation, significantly increasing conveying efficiency;separate weld driving system and column/boom system; welddriving system can move along the track;standard configuration: Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT’s root welding technology; TIG/MIG/SAW fill-in and cap welding; operation through a streamlinewelding control cabinet + an aluminum alloy wire control box

Original split design

Easier load&unload

Pipe automatic welding master

Rotator drive, rotator press down, telescopic boom welding

Standard configuration: Lincoln Flextech500


Max. DN1200

Max. 30mm

Max. 450DI/D(MIG+ SAW)

Max. equivalent to 9 welders

Production line equipment

High efficiency and safety
