Clamp Type Pipe Automatic Welding Machine

Model: UPAWM-16Aa/24Aa/32Aa

Pipe Diameter Applicable: DN400/DN600/DN800

Share:

Advantage:

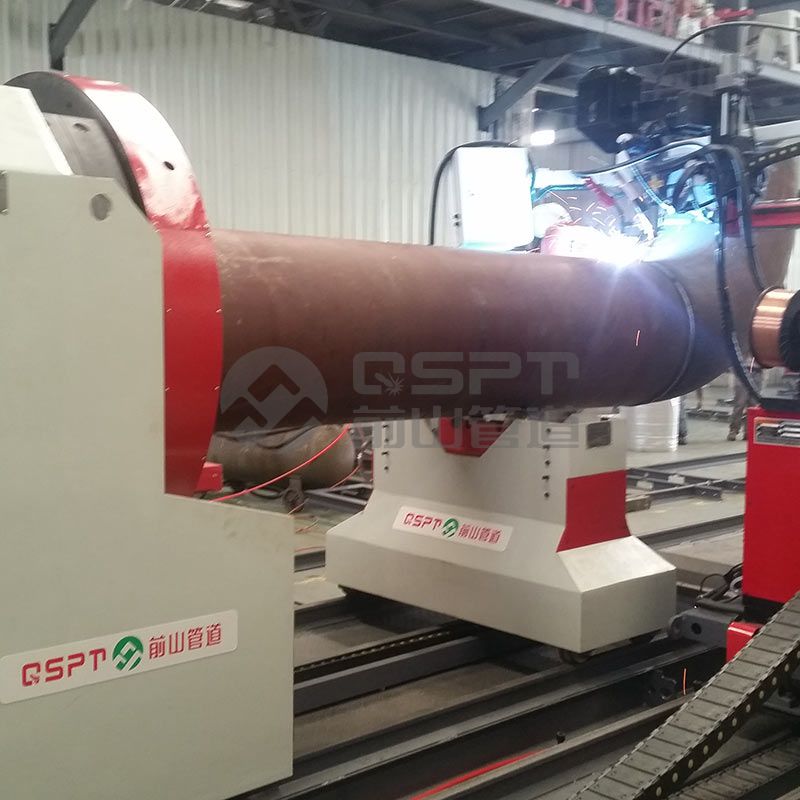

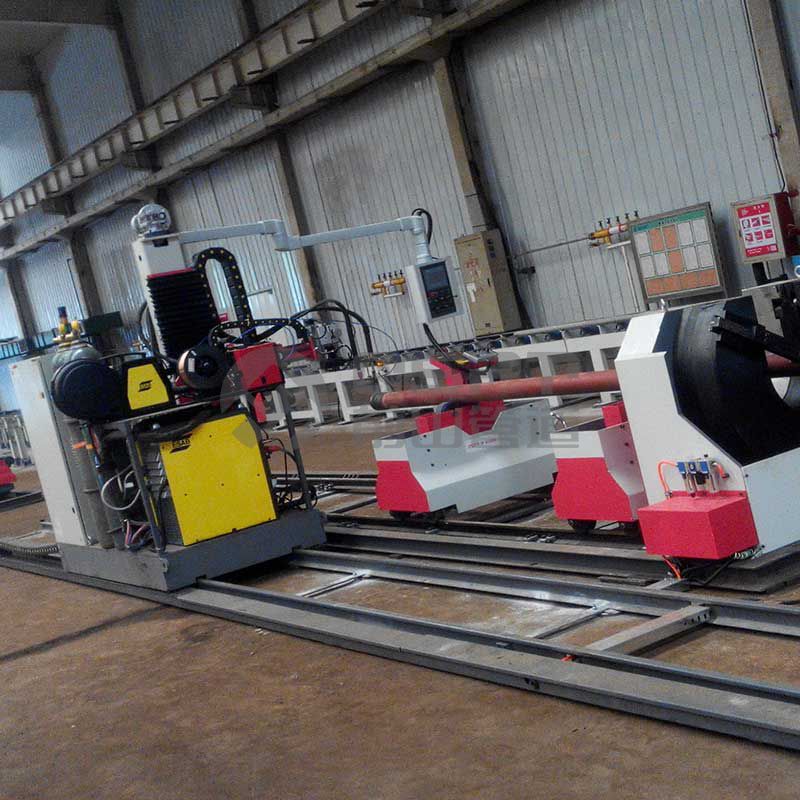

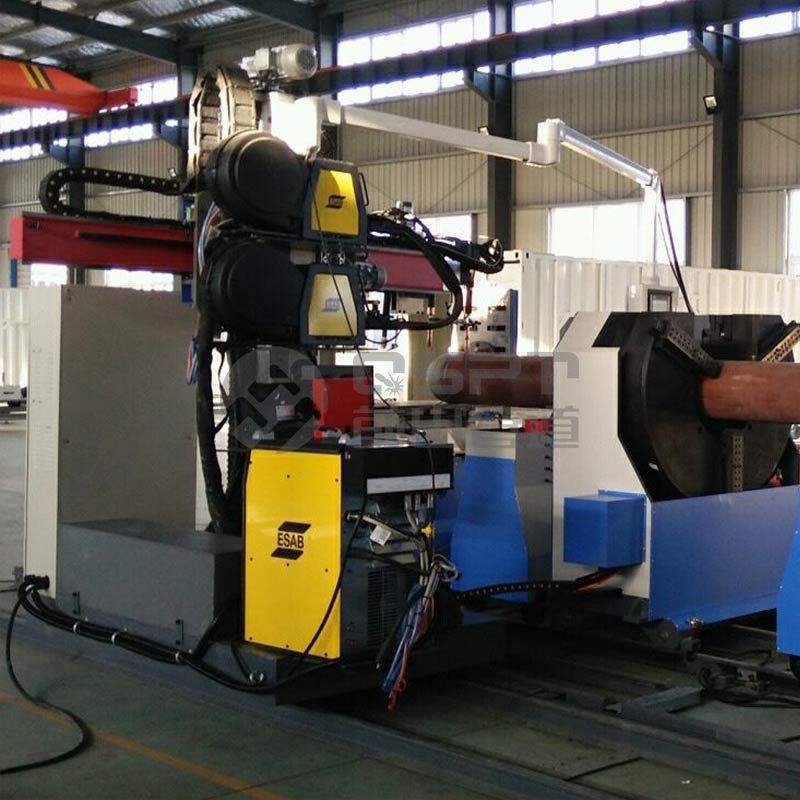

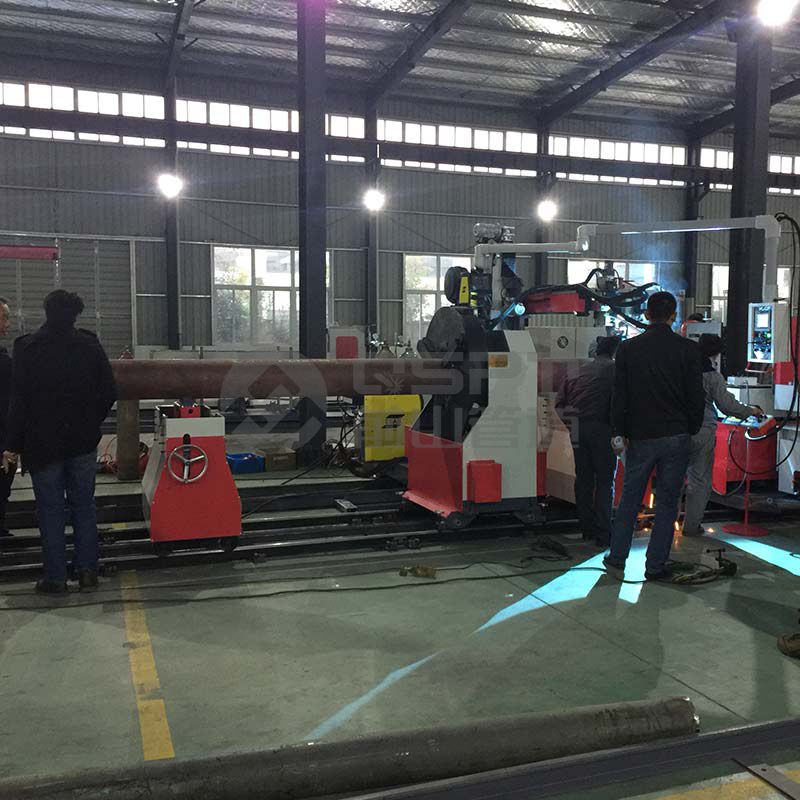

Performance Features: Suitable for long pipe spool with multi-pass weld; able to do multi-pass weld continuously;equipped with: one clamping type welding rotator; fourmovable trolleys with supporting wheels; one traveling cantilever welding trolley;standard configuration: Lincoln Flextech500 multi-function welding power; TIG/MIG root welding with QSPT's root welding technology; TIG/MIG/SAW fill-in and cap welding; operation through a streamline welding control cabinet + an aluminum alloy wire control box.


Clamp driven, clawfixture, boom trolley welding

One-time clamping, multi-pass welding

Low longitudinal displacement

Standard configuration: Lincoln Flextech500

TIG/MIG/ SAW

Max. DN800

Max. 20mm

Max. 300DI/D(MIG+ SAW)

Max. equivalent to 6 welders
