Differential Pipe Cutting & Beveling Machine

Model: DPCBM-16Aa/24Aa

Pipe Diameter Applicable: DN400/DN600

Share:

Advantage:

Performance Features: synchronously centering clamping with drive by the front and back two groups of hydraulic cylinders cam mechanism; cutting and beveling blade disc rotatesat high speed around the pipe center; when generate speed difference from 2 cutter disc of internal and external are respectively drive by 2 servo motors, the cutting feed gear drive mechanism began to motion, to drive cutting tools and beveling tools automatic radial cutting feed; its equipped with spray cooling device; cutting and beveling blade automatically feed in opposite direction; Preset bevel parameters throughPLC touch screen human-machine interface ; Four-column& four linear guide rail & two lifts to compose lifting systemenabling automatically mechanical centering; cuttingand beveling in one operation ( simultaneously producing two bevels); extremely high beveling efficiency; applicable for large amount of STD wall thickness (≤25mm)pipe bevel machining.


Master of cutting and beveling

Servo driven

PLC controlled

Automatically mechanicalcentering

Differential cutting feed

Max. DN600

Max. 25mm

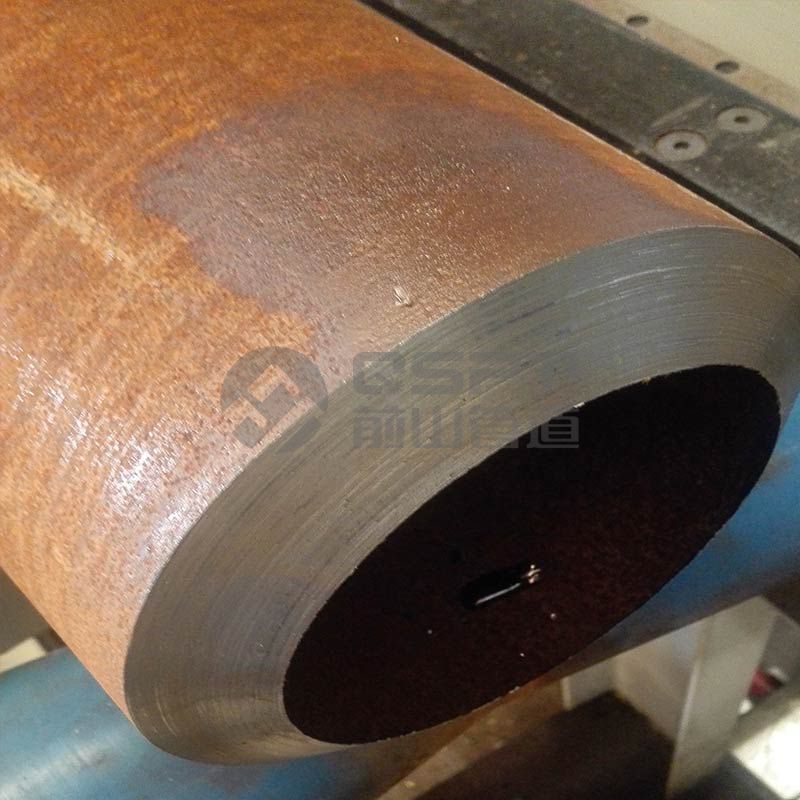

Cutting and beveling in one operation

Extraordinary efficiency≤5Min(DN400、25mm)
